Sds100 60lpm Manual Directional Control Valve Drilling Rig Machinery Parts 6 Banks

Name: Sds100 60lpm Manual Directional Control Valve Drilling Rig Machinery Parts 6 Banks
Brand: HANJIU
Price: 1 USD

Sds100 60lpm Manual Directional Control Valve Drilling Rig Machinery Parts 6 Banks Manufactures

Brand Name : HANJIU

Model Number : DCV60

Certification : CE

Place of Origin : CHINA

MOQ : 30 Sets

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 300000 sets per year

Delivery Time : 10-15 work days

Packaging Details : Carton Packing and finally with a Tray, or Wooden Box

Model No. : Direction control valve

Warranty : 12-18 months

Spool : 6lever/section

type : SDS160

Spool function : O/Y/A

Max pressure : 350bar

Contact Now

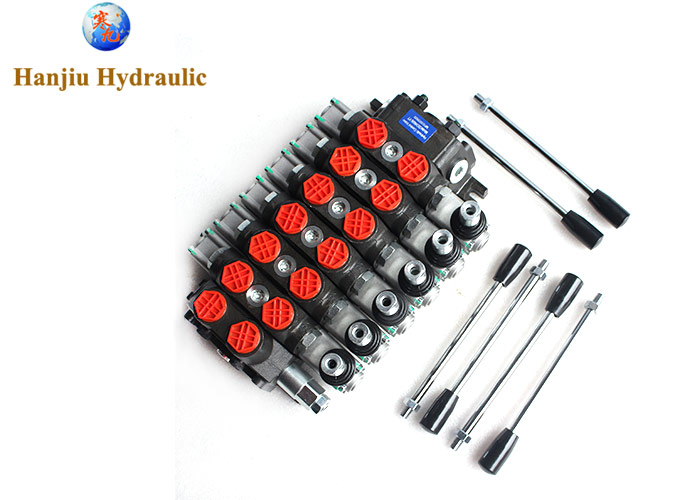

SDS100 60LPM valve for drilling rig machinery parts 6banks manual control valve

Simple, compact and heavy duty designed sectional valve from 1 to 12 sections for open and closed centre hydraulic systems.
- Fitted with a main pressure relief valve and a load check valve on every working section
- Available with parallel, tandem or series circuit.
- Optional carry-over port.
- A wide range of fixed setting antishock+anticavitation port valves.
- Intermediate sections for several types of circuit.
- Available manual, pneumatic, hydraulic and ON/OFF and proportional electro-hydraulic spool control kits.

Norminal Flow	60 L/min
Max Flow	16GPM
Max Pressure	315 bar/5076PSI
Control Type	manual, pneumatic, hydraulic, electro-hydraulic
Allowed back pressure	≤1 mpa
Oil port size	customizable
Operating range	15-75MM2/S
Viscosity	min 12 MM2/S
	max 400 MM2/S
Structure	6sections

oil ports

BSP Thread		Metric thread		US standard UNF thread		US standard NTP thread
code	Thread size	code	Thread size	code	Thread size	code	Thread size
G04	G1/4	M16	M16X1.5	U10	5/8-12UNF	N06	NPT3/8
G06	G3/8	M18	M18X1.5	U12	3/4-16UNF	N08	NPT1/2
G08	G1/2	M20	M20X1.5	U14	7/8-14UNF	N12	NPT3/4
G12	G3/4	M22	M22X1.5	U16	1-12UNF
		M27	M27X2

Sds100 60lpm Manual Directional Control Valve Drilling Rig Machinery Parts 6 Banks

RELATED PRODUCTS:

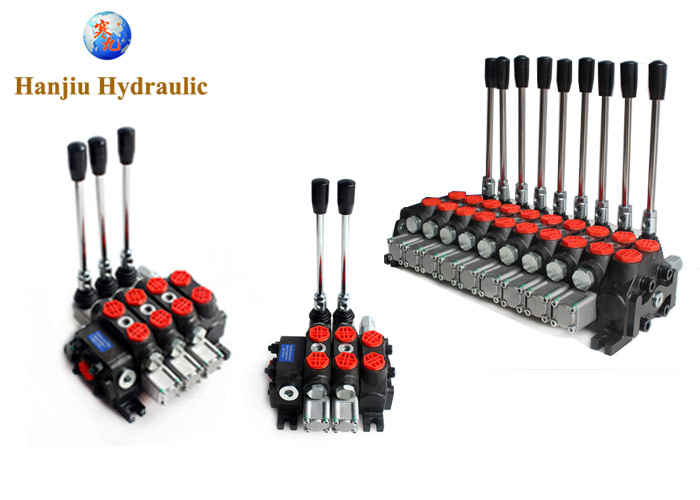

We offer a variety of monoblock and sectional directional control valves for use in agricultural, marine, industrial, construction sectors.

P40	Monoblock







P80	Monoblock






HSV6(12V/24V)	Sectional



DCV 40 (1-6) DCV 45 (1-8)	Monoblock







DCV60 (1-12)	Sectional












DCV100 (1-12)	Sectional












DCV140 (1-12)	Sectional












DCV200 (1-12)	Sectional
