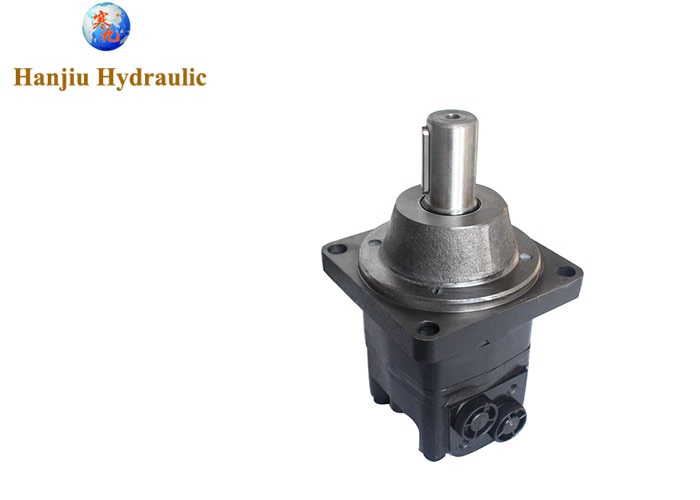

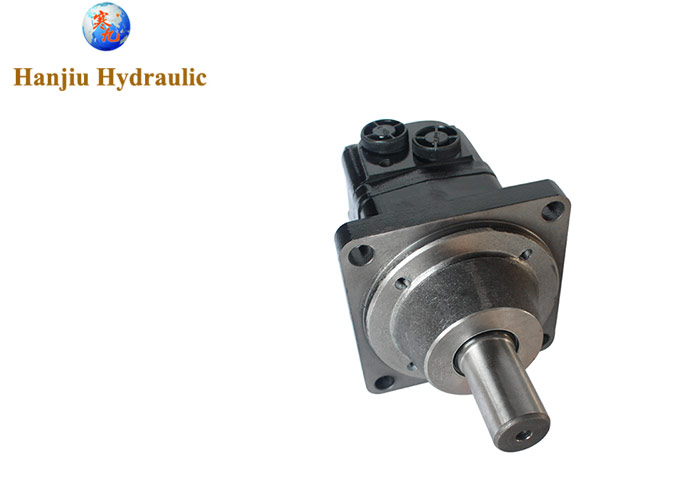

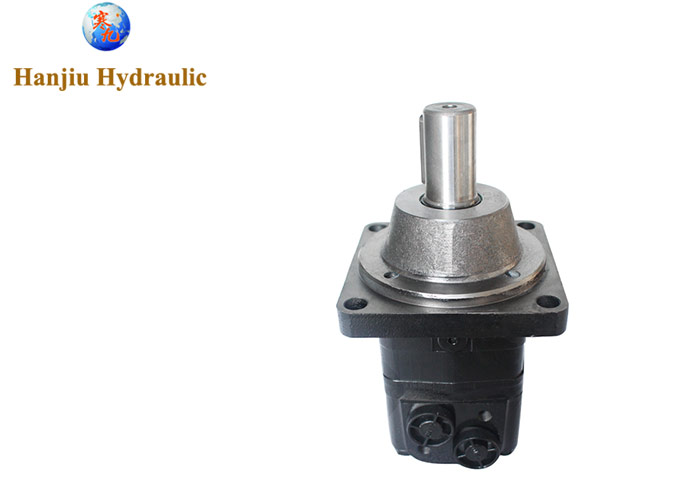

Maintenance Danfoss Hydraulic Motor Omsw125 151f0523 Wheel Engine 32mm Shaft Side Port

Name: Maintenance Danfoss Hydraulic Motor Omsw125 151f0523 Wheel Engine 32mm Shaft Side Port
Brand: HANJIU CHINA
Price: 1 USD

Maintenance Danfoss Hydraulic Motor Omsw125 151f0523 Wheel Engine 32mm Shaft Side Port Manufactures

Brand Name : HANJIU CHINA

Model Number : OMSW125

Certification : CE/ISO9001:2015

Place of Origin : CHINA

MOQ : 50 Pieces

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple

Supply Ability : 100000 pieces per year

Delivery Time : 25 - 35 work days

Packaging Details : 2pcs/32x32x17cm

Product : Wheel engine motor

Displacement : 125ml/r

Flange : wheel flange

Shaft : key shaft

Max Flow : cont.75/int.90 L/min

Max Speed : cont.600/int.720rpm

Contact Now

Hydraulic Maintenance Motor Danfoss Omsw125 151f0523 Wheel Engine Φ32mm Shaft Side Port

Product details:

Output volume (cc/rev):125,7
Shaft Ø (mm):32
Max. speed (rpm):600
Torque max. (Nm):375
Power max. (kW):18,0
Pressure difference (bar):210
Inlet pressure (bar):230
Volume flow max. (l/min):75
Motor version:with check valves
Connection:G 1/2"
Leak oil connection:G 1/4"
L (mm):137
L1 (mm):21,8
Danfoss reference no.:151F0523

Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 475
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	394	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	880	910
	int.	240	300	370	430	466	540	658	980	990
	peak	260	320	400	472	650	690	740	751	760
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11	9
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	12	11
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	16	14
	int.	21	21	21	21	16	16	14	19	15
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

The recessed mounting flange of a wheel motor makes it possible to fit into a wheel hub or winch drum so that the radial load acts midway between the two motor bearings. This gives the best utilisation of the bearing capacity and is a very compact solution..
