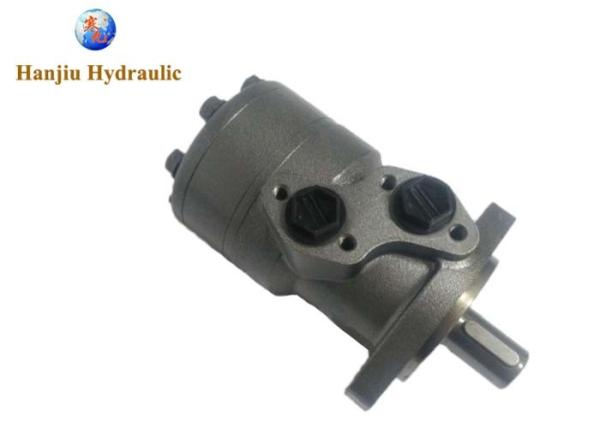

Geroler Type Hydraulic Winch Motor BMR 200 For Construction Equipment OEM Available

Name: Geroler Type Hydraulic Winch Motor BMR 200 For Construction Equipment OEM Available
Brand: Hanjiu
Price: 1 USD

Geroler Type Hydraulic Winch Motor BMR 200 For Construction Equipment OEM Available Manufactures

Brand Name : Hanjiu

Model Number : BMR 200

Certification : CE

Place of Origin : China

MOQ : 50 units

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal .

Supply Ability : 100,000 units / Year

Delivery Time : 10-15 working days

Packaging Details : Carton packing , with a tray or wooden box if needed .

Product name : Hydraulic Gear Motors

Shaft : Φ25 shaft , flat key 8*7*32 , Φ25.4 shaft , flat key 6.35*6.3*32

Displacement : 50cc,80cc,100cc,125cc,160cc......500cc

Applications : Agricultural machine, Transportation, Construction equipment, Metallurgical, Marine, etc.

Replacement : OMR, Eaton S,T series , M+S MR etc

Oil port : G1/2 , M22*1.5 , 1/2-14NPTF , ZG1/2 , M18*1.5

Contact Now

Hydraulic Winch Motor BMR 200 For MACHINE TOOLS/ Screw Drives In Injections

BMR series motor adapt the advanced Gerolor gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure , provide reliable and smooth operation, high efficiency and long life.

Characteristic Features:

* Small size , light weight ,Spool valve motor, geroler type Light and compact and thus easy to install .
* Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
* A variety of connection type of flange output shaft and oil port . you can find some of them below :

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

Geroler Type Hydraulic Winch Motor BMR 200 For Construction Equipment OEM Available

MOTOR CROSS REFERENCE TABLE

HANJIU HYDRAULIC	M+S HYDRAULIC	EATON CHAR LYNN		ROSS TRW	WHITE CROSS	PARKER	SAM BREVINI	BOSCH RECROTH
BMM	MM MLHK	J SERIES	OMM				BGM	MGX
BMP/BM1	MP HP	H SERIES	OMP DH	MF MG	WP RS	TC TE TB	BG	MGP GXP
BMR/BM2	MR HR MLHRW,RW	S,T SERIES W SERIES	OMR DS OMEW	MB	WR RE	TF	BR	MGR GMR
BMH/BM4	MH MLHH HW HWF		OMH	ME	RE	TG
BMS/BM5	MS MSY MLHS	2000 SERIES	OMS	ME	RE	TG	HPR	MGS GMS
BMT/BM6	MT MLHT MTM	6000 SERIES	OMT TMT	MJ			HT	MGT,GMT
BMV	MV MLHV	10000 SERIES	OMV					MGV GMV

Applications :

Lawn Mower
mobile machinery
Excavator
Car Washes
Conveners
grape harvesters
potato harvesters mining
metallurgy
shipping
water conservancy
